– OVERVIEW –
Item Dimensions

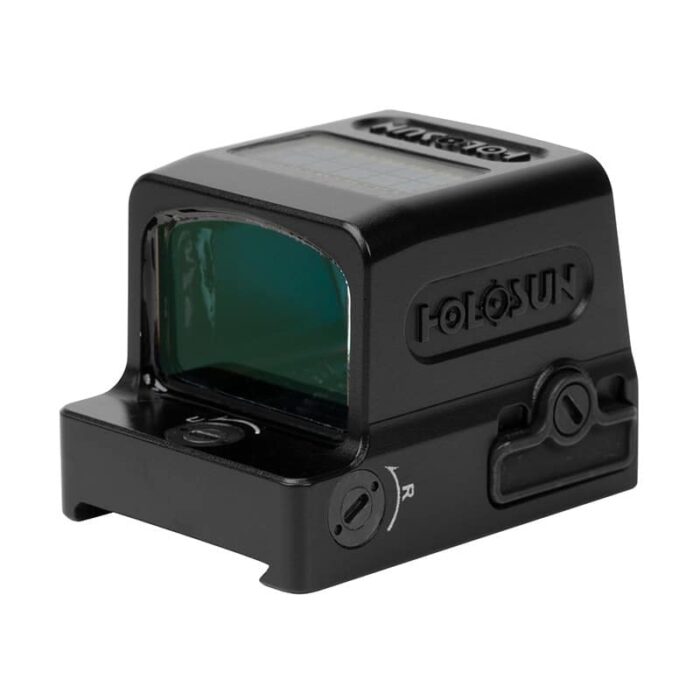

The HE509T-RD X2 is an enclosed reflex optical sight designed for pistol applications. Features include a Titanium housing, Holosun’s Super LED with up to 50k hours battery life, Multi-Reticle System, Solar Failsafe, and Shake Awake. This X2 version adds improved glass clarity, Lock Mode, and a full Multi-Reticle System providing 32MOA circle with 2MOA dot, dot only, or circle only reticle options.
The included 509T RMR adapter plate is not compatible with ZEV or Shadow Systems style RMR interfaces.
In the Box
- RMR Adapter
- T10 L Key
- User Manual
- CR1632 Battery
- Lens Cloth
– TECH & FEATURES –
- Solar Failsafe™
- Shake Awake™
- Multiple Reticle System
- Multilayer Reflective Glass
- Titanium Housing
- MRS: Circle Dot; Dot Only; Circle Only
- Up to 50,000 Hours Battery Life (Setting 6)
- 12 Brightness Setting: 10 DL & 2 NV Compatible
- Enclosed Design & Titanium Housing
- Convenient Tray Battery Compartment
- Parallax-free & Unlimited Eye Relief
– SPECIFICATION –
OPTICAL DATA
- Reticle2 MOA Dot & 32 MOA Circle
- Light Wavelength650nm
- Reticle ColorRed
- Parallax FreeYes
- Unlimited Eye ReliefYes
- Magnification1x
- Multi-CoatingsYes
ELECTRONIC DATA
- Power SourceSolar & Battery
- Battery TypeCR1632
- Battery Life (Hours)50000
- Brightness Setting10 DL&2 NV
PHYSICAL DATA
- Window Size0.66×0.9
- Dimension (in)1.6×1.16×1.13
- Weight (oz)1.72
MECHANICAL DATA
- Housing MaterialTitanium
- Surface FinishTitanium
- Adjustment per Click1 MOA
- W&E Travel Range±30 MOA
ENVIRONMENT DATA
- Storage Temperature-40℃~70℃
- Working Temperature-30℃~60℃
- SubmersionIP67
- Vibration5000G
